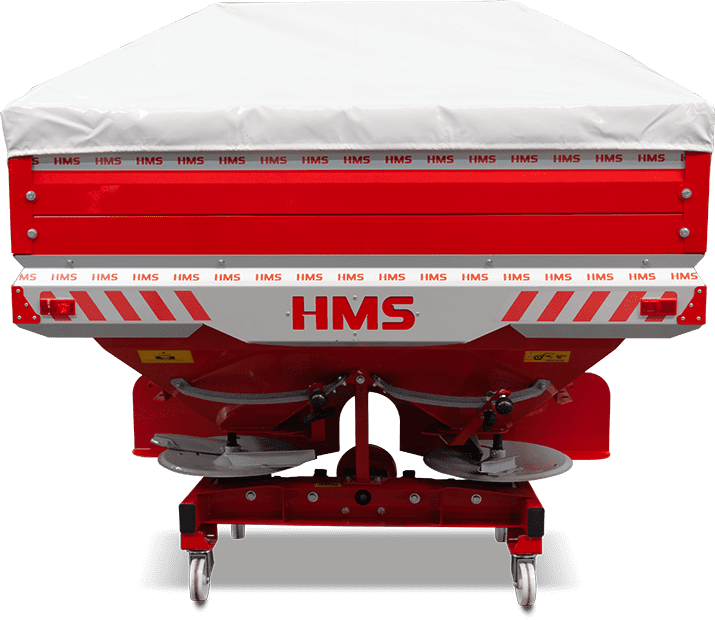

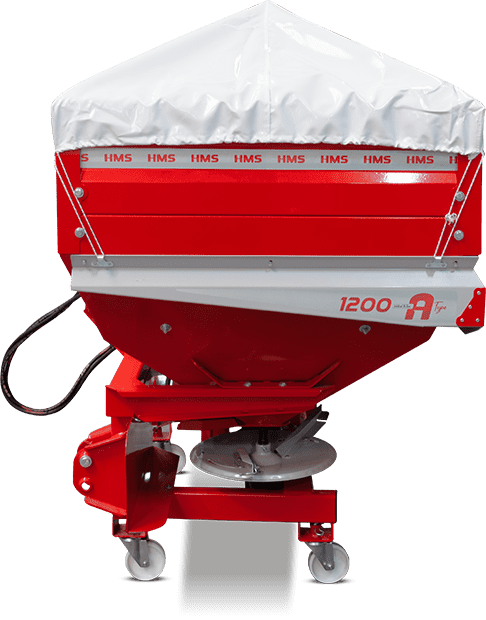

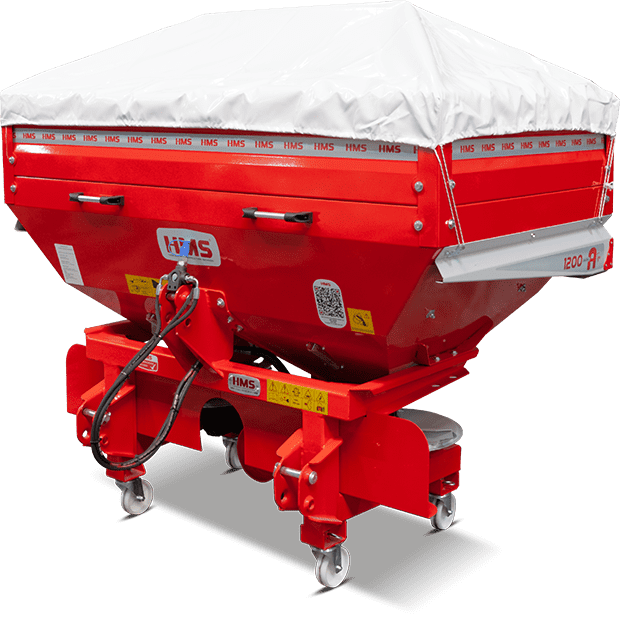

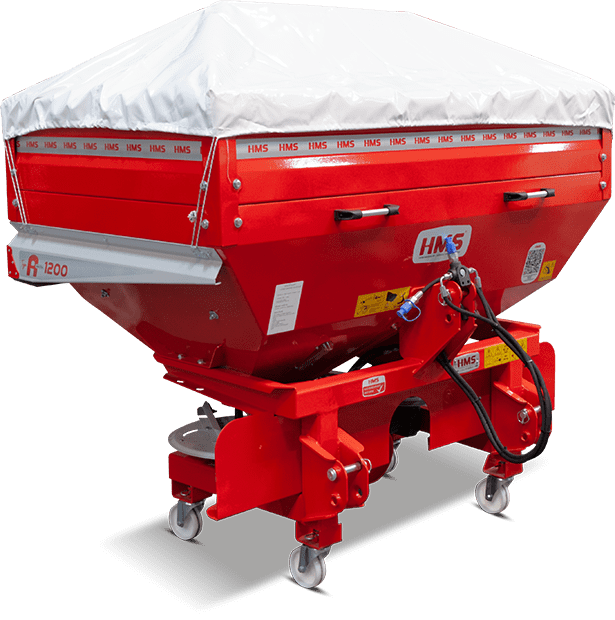

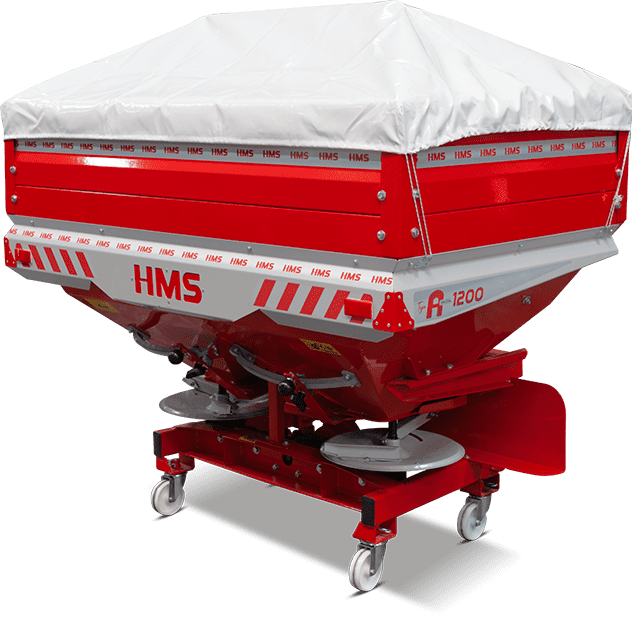

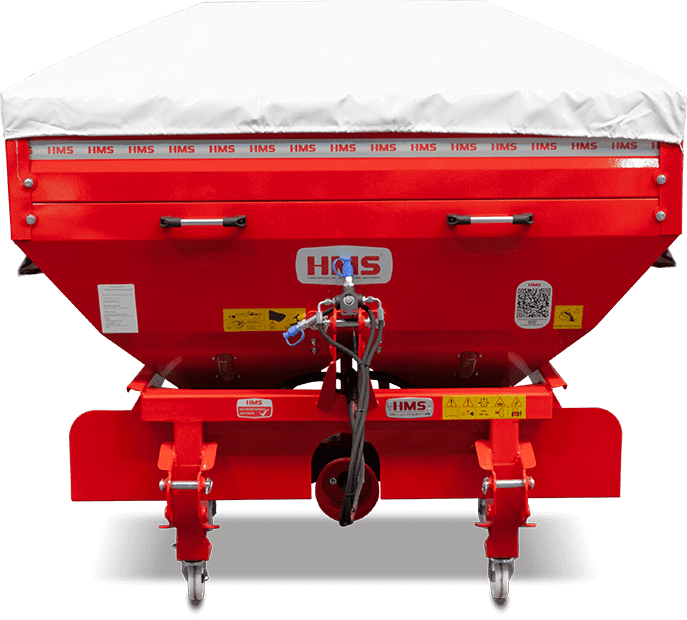

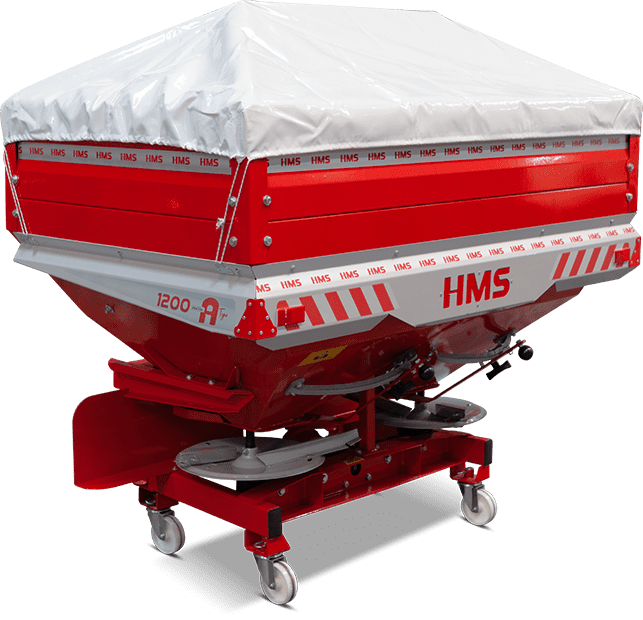

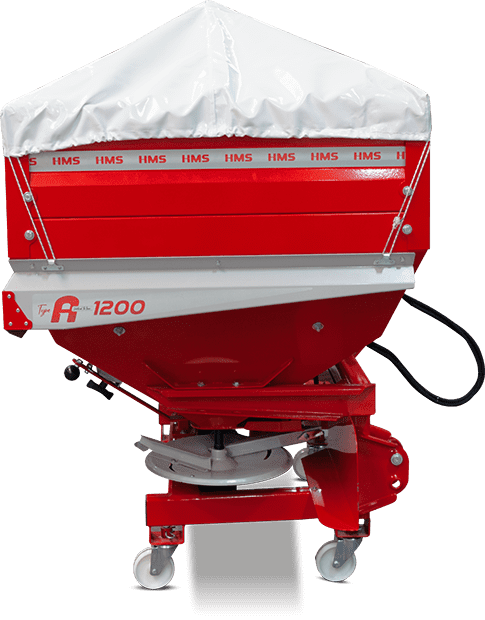

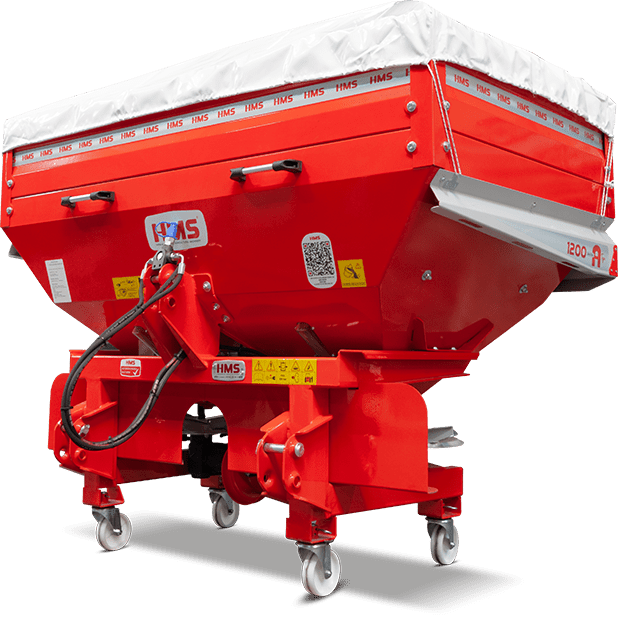

A 1200
Double disc fertilizer spreaders, which are manufactured as hanging type, are produced according to needs between 850 liters and 1200 liters. Fertilizer spreaders can be controlled hydraulically, and thanks to the hydraulic valve, you can spread fertilizer on the right and left sides separately. Thanks to the hydraulic control lever, fertilizer application from the tractor cabin at the border points is very easy and unnecessary fertilizer consumption is prevented by shutting it down quickly. The fertilizer spreading working width of the machine is between 10-24 m. You can optionally adjust the working width depending on the disc and wing lengths you will purchase. Fertilizer spreading distance may vary depending on the type of fertilizer. The fertilizer tank is divided into two with an inverted V-shaped separator plate at the bottom, and the fertilizer flow is provided without interruption with the vertical mixer inside.
- Double Disc Type
- Double Hydrolic Dosing
- Strainer
- Cover
- Traning Wheels
- 18-24 mt. Disc Kit
- Reflective Stickers
- Steel Safety Barriers
- Cardan Shaft
A SERIES TECHNICAL SPECIFICATIONS | ||||
A-650 | A-850 | A-1000 | A-1200 | |
Mixer Type | Dikey / Vertical | Dikey / Vertical | Dikey / Vertical | Dikey / Vertical |
Distributor Disc Quantity | 2 | 2 | 2 | 2 |
Number of Blades on Each Disc | 2 | 2 | 2 | 2 |
PTO (PTO) Speed (R/min) | 540 | 540 | 540 | 540 |
Working Speed (km/h) | 8-10-12 | 8-10-12 | 8-10-12 | 8-10-12 |
Working Width* (m) | 10-24 | 10-24 | 10-24 | 10-24 |
Empty Weight (kg) | 248 | 272 | 282 | 300 |
Fertilizer Filling Capacity (lt) | 650 | 850 | 1000 | 1200 |
Height (cm) | 141 | 152 | 163 | 174 |
Width (cm) | 120 | 120 | 120 | 120 |
Length (cm) | 182 | 182 | 182 | 182 |
