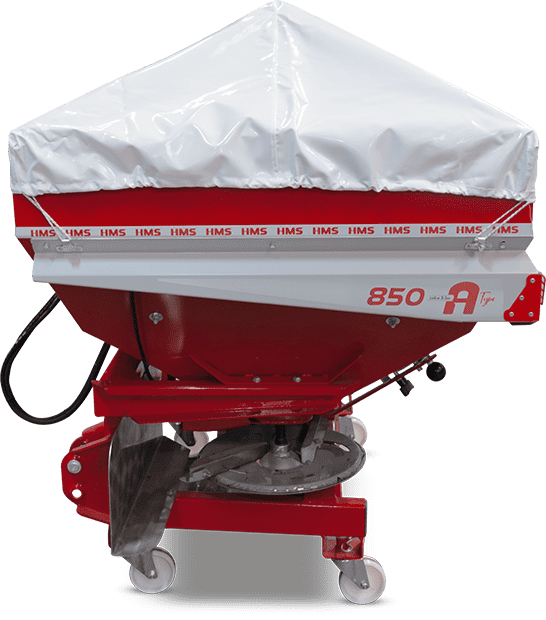

VERTICAL SHAFT FERTILIZER SPREADER MACHINES WITH MIXER

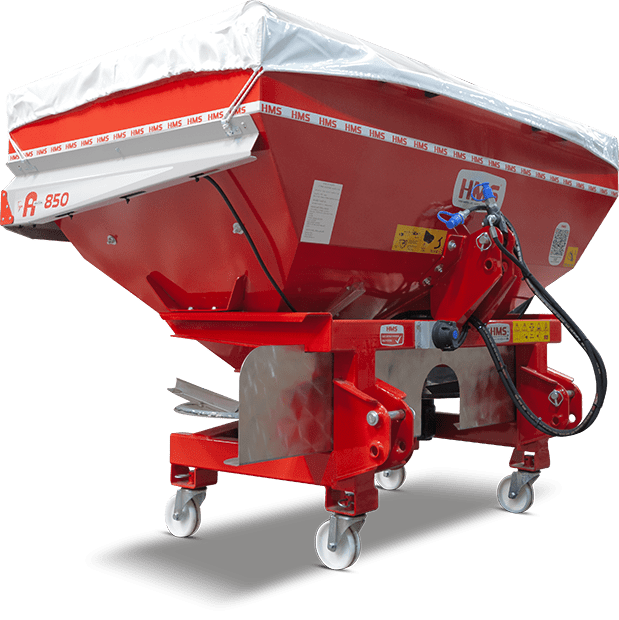

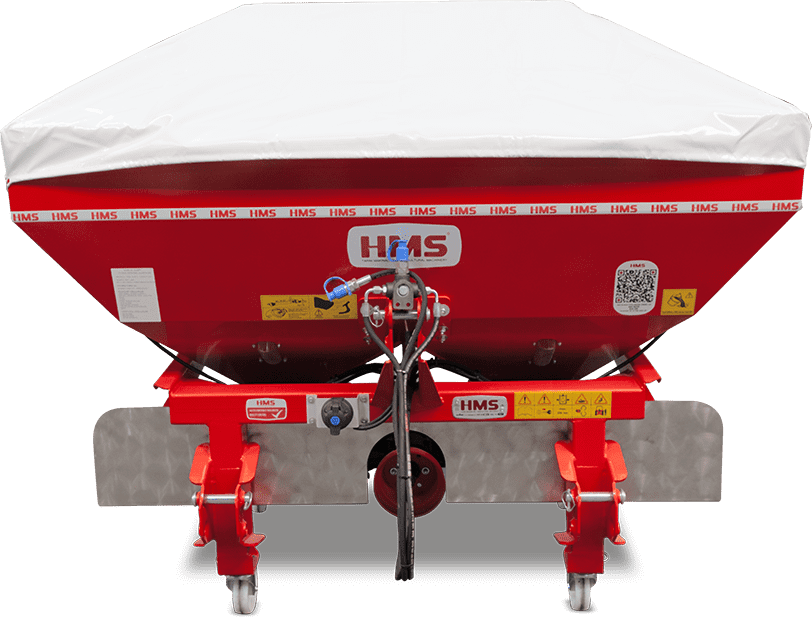

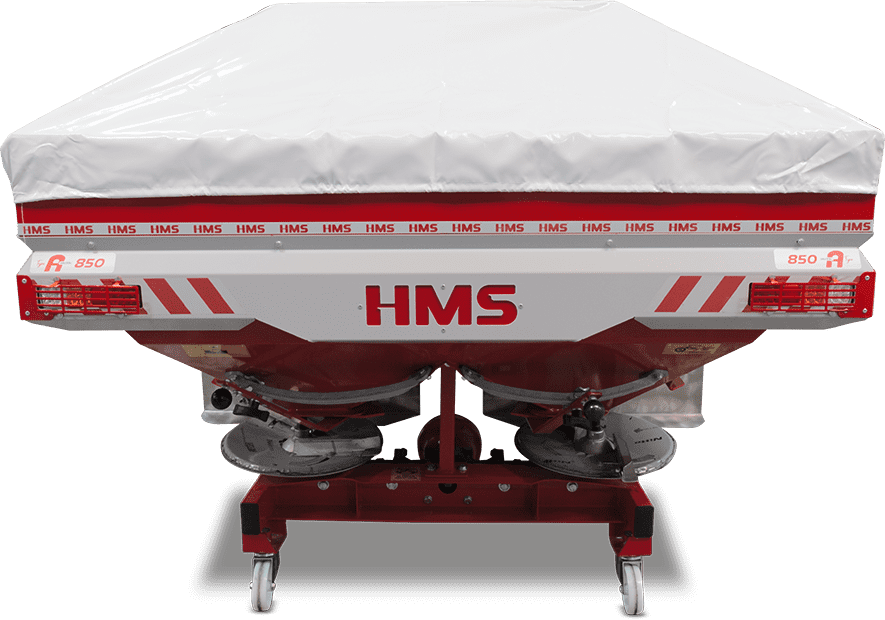

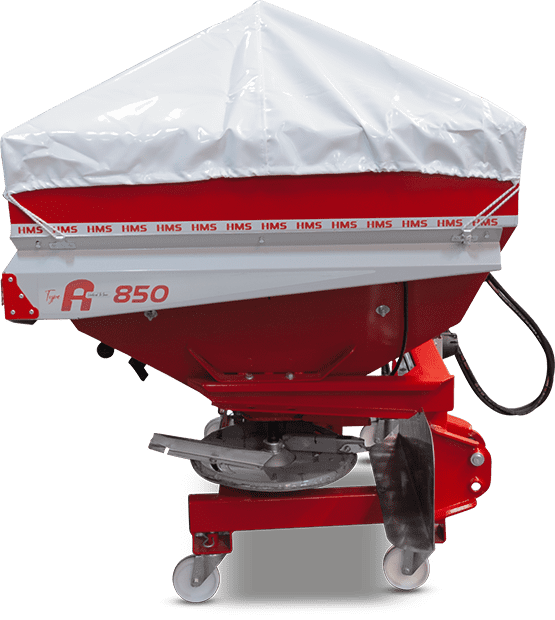

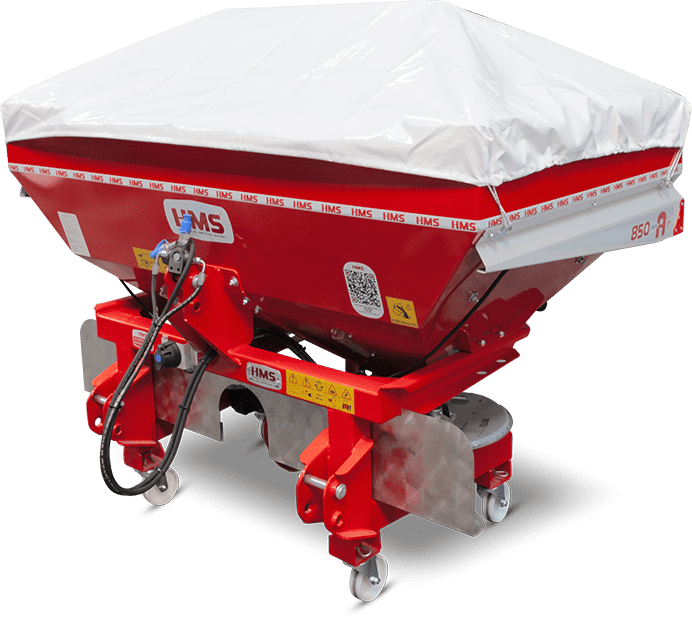

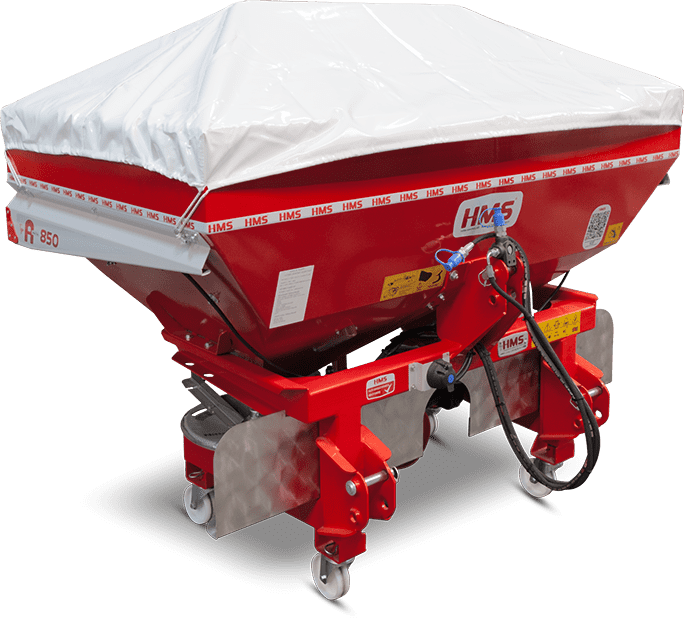

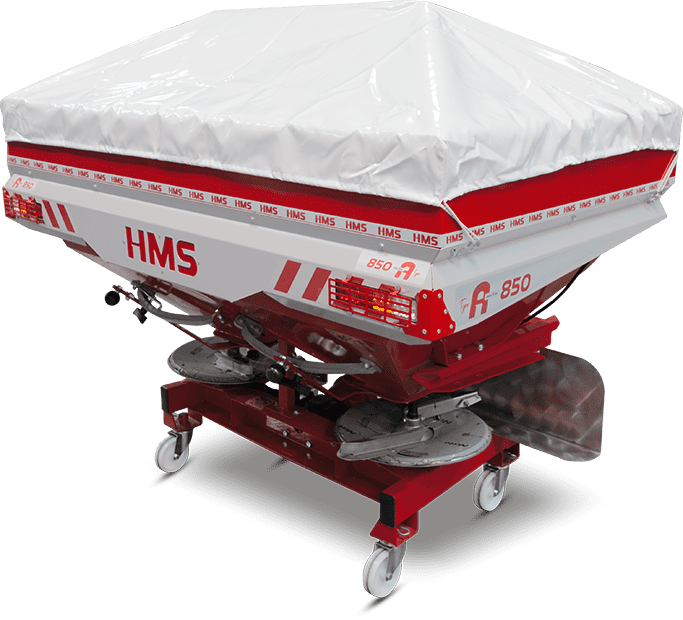

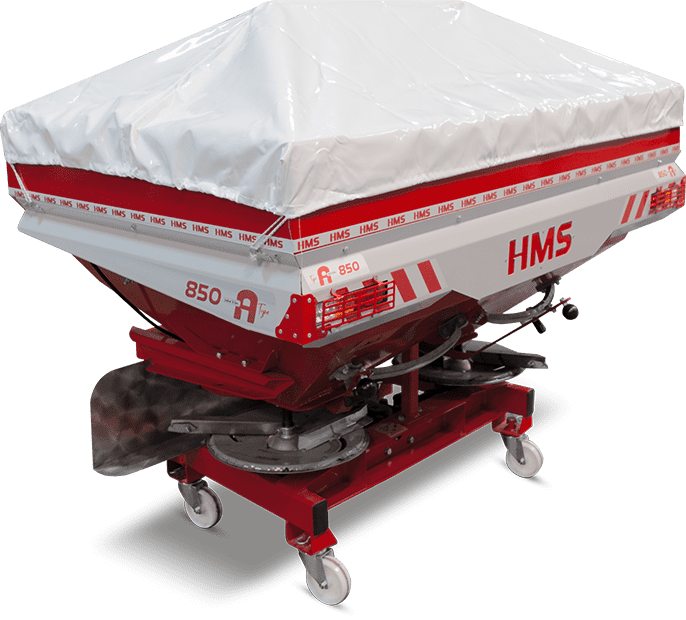

A 850

Custom Design
Ergonomic Structure
Quality Material

Double disc fertilizer spreaders, which are manufactured as hanging type, are produced according to needs between 850 liters and 1200 liters. Fertilizer spreaders can be controlled hydraulically, and thanks to the hydraulic valve, you can spread fertilizer on the right and left sides separately. Thanks to the hydraulic control lever, fertilizer application from the tractor cabin at the border points is very easy and unnecessary fertilizer consumption is prevented by shutting it down quickly. The fertilizer spreading working width of the machine is between 10-24 m. You can optionally adjust the working width depending on the disc and wing lengths you will purchase. Fertilizer spreading distance may vary depending on the type of fertilizer. The fertilizer tank is divided into two with an inverted V-shaped separator plate at the bottom, and the fertilizer flow is provided without interruption with the vertical mixer inside.

Standard Features
  1. Double Disc Fertilizer Spreader
  2. Right-Left Hydraulic Opening and Closing
  3. Screen
  4. Cover
  5. Chrome Disc
  6. Shaft
  7. Chrome Mixer
  8. Chrome Chain
  9. Mudguard
  10. 18-24m Disc
  11. Traffic Kit
  12. Reflective Label
  13. Steel Surround Barriers
Options
  1. 36 Meter Working Width Disk Assembly Price Difference
  2. Chrome Boundary Cutter (Limiter) Price Difference
  3. Fertilizer Distributor Guard Stainless Steel
  4. Dosage Cover Stainless Steel
A SERIES TECHNICAL SPECIFICATIONS
  A-650 A-850 A-1000 A-1200
Mixer Type Dikey / Vertical Dikey / Vertical Dikey / Vertical Dikey / Vertical
Distributor Disc Quantity 2 2 2 2
Number of Blades on Each Disc 2 2 2 2
PTO (PTO) Speed (R/min) 540 540 540 540
Working Speed (km/h) 8-10-12 8-10-12 8-10-12 8-10-12
Working Width* (m) 10-24 10-24 10-24 10-24
Empty Weight (kg) 248 272 282 300
Fertilizer Filling Capacity (lt) 650 850 1000 1200
Height (cm) 141 152 163 174
Width (cm) 120 120 120 120
Length (cm) 182 182 182 182
